Strymon Zuma High Current DC Power Supply

A pedalboard can be a noisy place, and your choice of power supply can have a huge effect on the noise level and transparency of your guitar tone. Strymon designed Zuma to address the main pain points guitarists face with dual-stage topology, pre-regulated outputs, optically isolated feedback and advanced multi-stage filtering – so you can rest easy at the gig, knowing that your pedals and rig will sound the absolute best that it can.



Dual isolation.

Zuma’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

World tour ready.

With automatic international power compatibility built-in, Zuma delivers an abundance of clean, rock-steady power to all your pedals, on any stage anywhere you play in the world.

Never run out of outputs.

Ojai R30 (sold separately) with the 24V Out jack.

Features

Never run out of outputs.

Expandable System

Have a growing rig? Or unique requirements that require distributed power?

Add more outputs to your Zuma by connecting a Strymon Ojai  or Ojai R30 (sold separately) with the 24V Out jack.

Use Zuma by itself if that’s all you need, or as part of a truly expandable, modular power distribution system that can grow with your pedalboard.

Ins & Outs

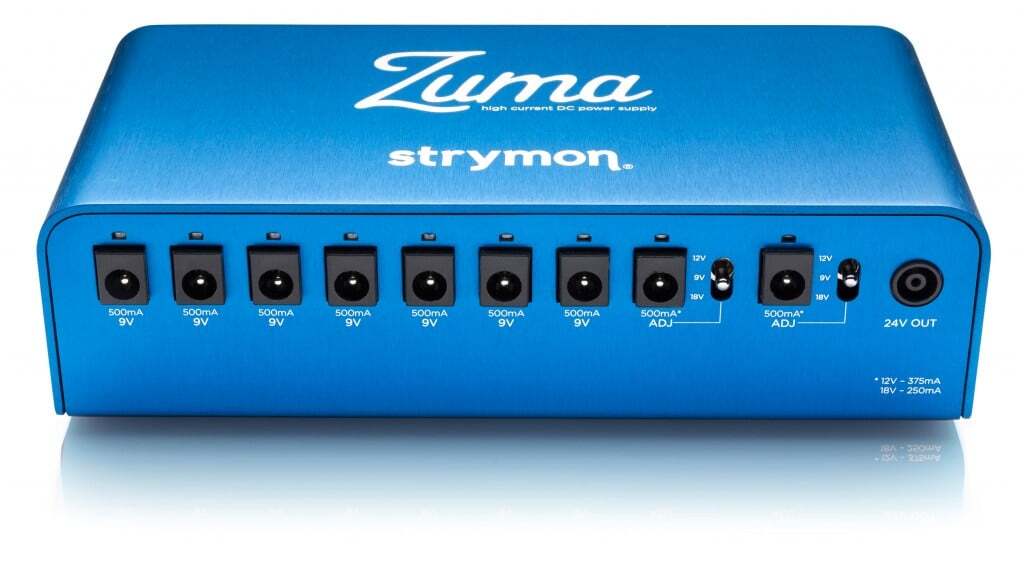

Front Panel

  • LED illuminates when pedal is connected.
  • Plug your pedals in here. Outputs 1 through 7 provide 500mA at 9VDC.
  • Plug your pedals in here. Outputs 8 and 9 offer a selection of 9V, 12V, or 18V, providing 500mA, 375mA, or 250mA respectively.
  • Connect a Strymon Ojai or Ojai R30 (sold separately) to the 24V OUT jack and gain additional outputs for your pedals.

Rear Panel

  • Connect the included IEC cable here. Compatible with 120V, 240V, 100V, and anywhere in between. For worldwide operation, use appropriate regional IEC cable (sold separately).

Design

Strymon's power design team has over 25 years of experience in power system design, from developing mission-critical power systems for the aerospace industry, to developing best-in-class power supplies for top-selling power amplifiers, studio monitors, guitar amplifiers, and more. Strymon’re using this vast experience to provide clean, dependable power to all of your effects pedals.

Specs

  • 9 high-current, fully isolated outputs
  • 9 outputs offer 9V DC option
  • 500mA per 9V DC output powers nearly any pedal
  • 2 selectable outputs offer 9V, 12V, or 18V DC options
    • 12V option provides 375mA, 18V provides 250mA
  • Delivers a maximum of 48W
  • 9 pedal cables included (5.5mm x 2.1mm barrel connectors, center negative, right angle to straight cables)
  • Detachable IEC power cable included
  • 24V OUT jack allows connection to additional outputs via Strymon Ojai or Ojai R30 (sold separately)
