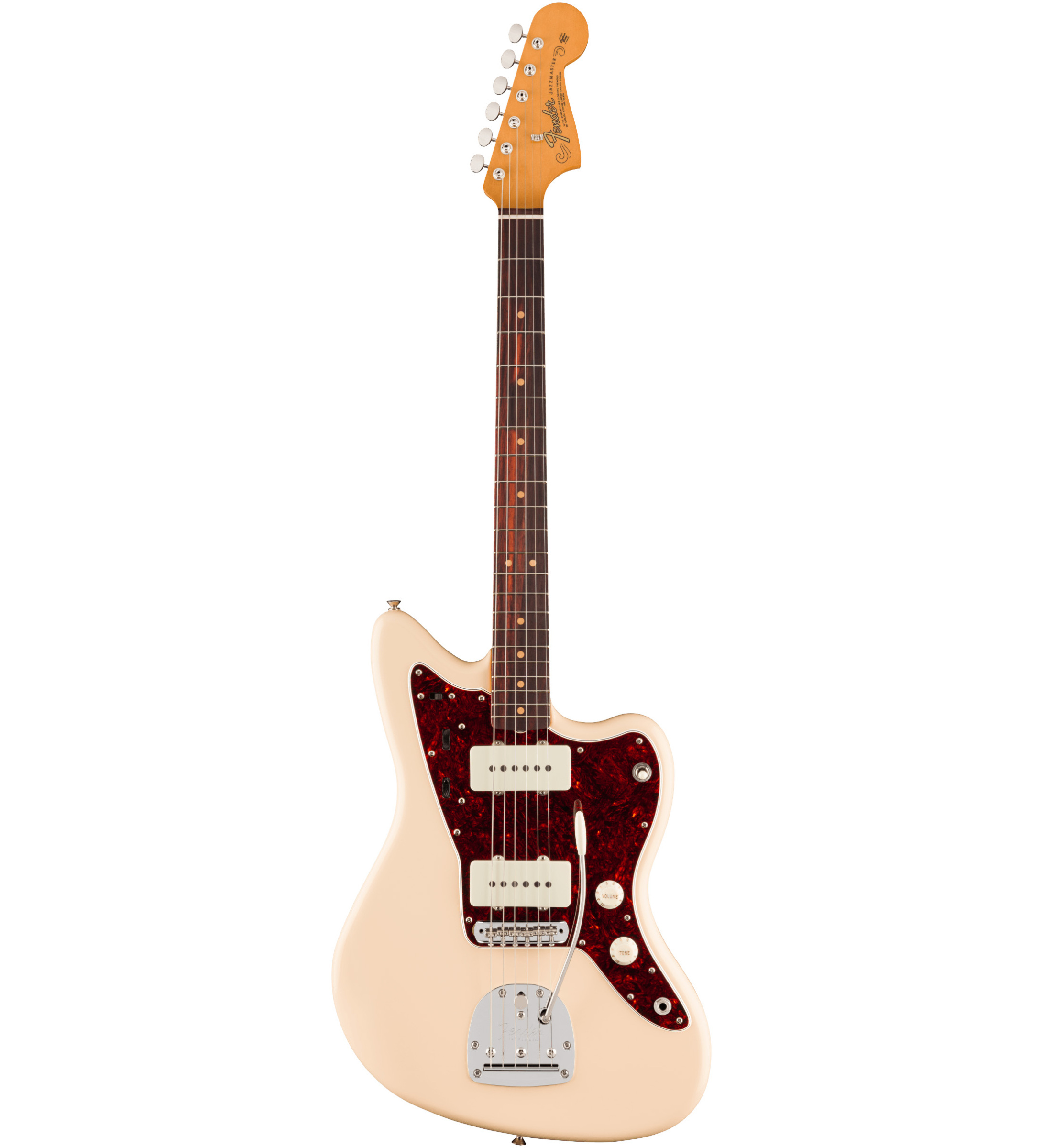

Fender Vintera® III Mid '60s Jazzmaster®, Rosewood Fingerboard, Olympic White
|
|
|
|
|
|
General
| Series | Vintera® III |
| Orientation | Right-Hand |
| Color | Olympic White |
| Country of Origin | MX |
Body
| Body Shape | Jazzmaster® |
| Body Style | Solid Body |
| Body Material | Alder |
| Body Finish | Gloss Polyester |
Neck
| Headstock | Jazzmaster® |
| Neck Material | Maple |
| Neck Finish | Gloss Urethane |
| Neck Shape | Mid '60s "C" |
| Neck Construction | 4-Bolt Standard |
| Fingerboard Material | Round-Laminated Rosewood |
| Fingerboard Radius | 7.25" (184.1 mm) |
| Position Inlays | Clay Dot |
| Side Dots | White |
| Number of Frets | 21 |
| Fret Size | Vintage Tall |
| Truss Rod | Vintage-Style Butt Adjust |
| Nut Material | Bone |
| Nut Width | 1.650" (42 mm) |
| Scale Length | 25.5" (648 mm) |
Hardware
| Bridge | 6-Saddle Vintage-Style Adjustable with "Floating" Tremolo Tailpiece |
| Tailpiece | Vintage-Style Floating Tremolo with Tremolo Lock Button and Push-In Tremolo Arm |
| Bridge Mounting | Floating |
| Tremolo Arm | Pop-In Vintage-Style Jazzmaster® |
| Hardware Finish | Nickel/Chrome |
| Tuning Machines | Fender® Vintage-Style |
| String Trees | Butterfly |
| Pickguard | 4-Ply Tortoiseshell |
| Pickup Covers | Vintage White |
| Control Knobs | Vintage White |
| Switch Tip | Vintage White |
| Neck Plate | 4-Bolt Vintage-Style |
| Strap Buttons | Vintage-Style |
| Strings | Fender® USA 250R Nickel Plated Steel (.010–.046) |
Electronics
| Neck Pickup | Vintage-Style Mid '60s Single-Coil Jazzmaster® |
| Bridge Pickup | Vintage-Style Mid '60s Single-Coil Jazzmaster® |
| Pickup Configuration | SS |
| Controls | Lead Circuit (Slide Switch Down): Master Volume, Master Tone Rhythm Circuit (Slide Switch Up): Two Thumbwheel Controls for Neck Pickup Volume and Tone |
| Switching | 3-Position Toggle (Lead Circuit) |
| Auxiliary Switching | 2-Position On/Off Slide Switch for Switching Between "Lead" and "Rhythm" Circuits |
