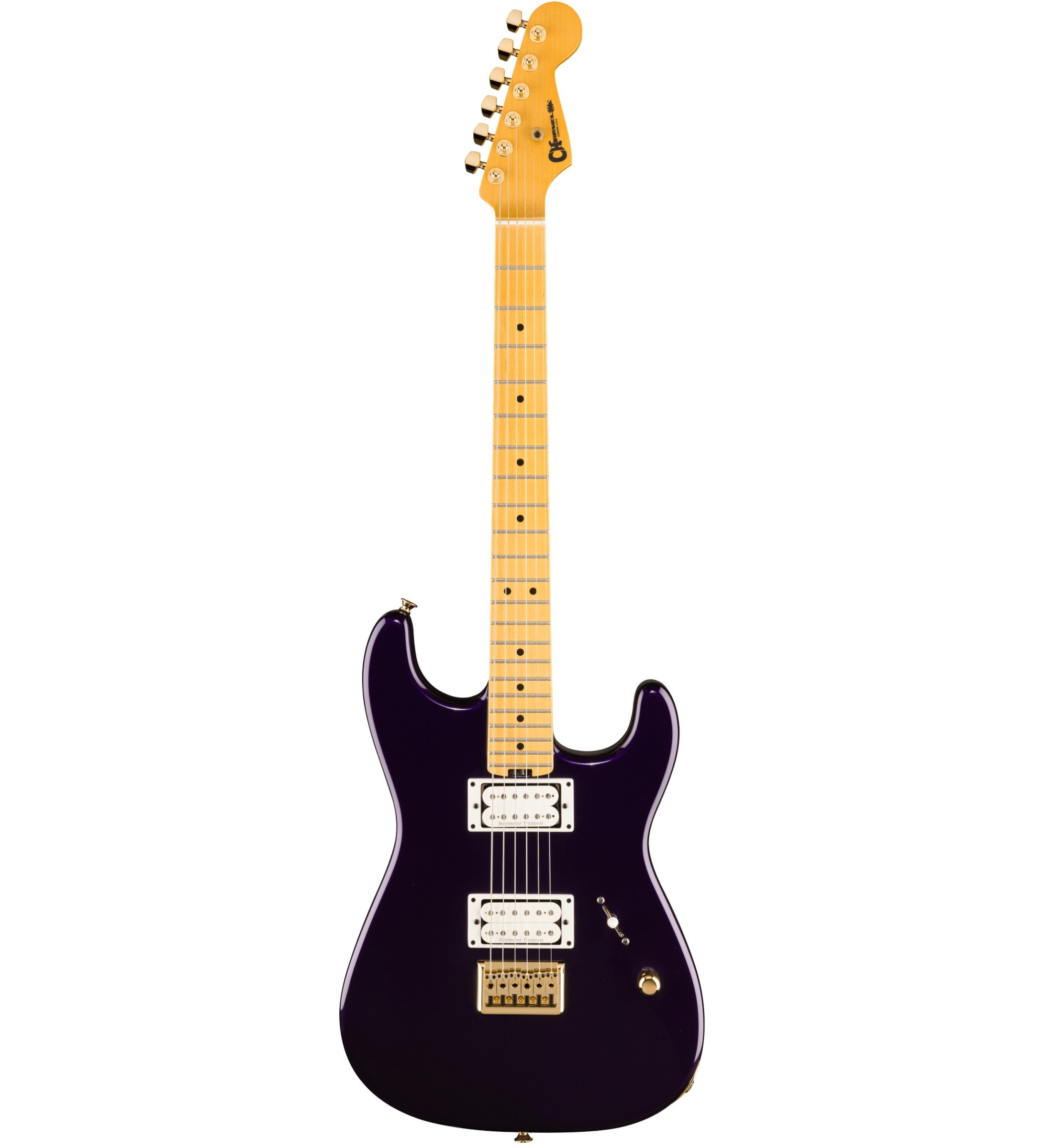

Charvel American Neo-Classic San Dimas® SD1 HH HT, Velvet Midnight

Body

• Shape: San Dimas® Style 1

• Style: Solid Body

• Material: Alder

• Finish: Gloss

Neck

• Headstock: Licensed Fender® Stratocaster®

• Material: Quartersawn Maple

• Finish: Natural Satin

• Shape: Speed Neck with Rolled Fingerboard Edges

• Construction: Bolt-On with Graphite Reinforcement

• Fingerboard Material: Quartersawn Maple

• Fingerboard Radius: 12" to 16" Compound (304.8 mm – 406.4 mm)

• Position Inlays: Black Dot

• Side Dots: Luminlay®

• Number of Frets: 22

• Fret Size: Jumbo Stainless Steel

• Truss Rod: Dual-Action with Wheel (Heel-Mount Adjustment)

• Nut Material: Bone

• Nut Width: 1.6875" (42.86 mm)

• Scale Length: 25.5" (648 mm)

Hardware

• Bridge: Charvel® Hardtail

• Hardware Finish: Gold

• Tuning Machines: Charvel®-Branded Die-Cast

• String Trees: Vintage-Style Disc

• Pickguard: None

• Pickup Covers: Parchment

• Control Knobs: Dome-Style

• Switch Tip: Parchment

• Neck Plate: 4-Bolt Serialized

• Strap Buttons: Standard

• Strings: Nickel Plated Steel (.009–.042)

Electronics

• Neck Pickup: Seymour Duncan® '59™ SH-1N

• Bridge Pickup: Seymour Duncan® JB™ TB-4

• Pickup Configuration: HH

• Controls: Volume (500K EVH® Bourns® Low Friction Pot)

• Switching: 5-Position Blade

  • Position 1: Bridge

  • Position 2: Bridge Outer Coil and Neck Inner Coil

  • Position 3: Bridge and Neck

  • Position 4: Bridge Inner Coil and Neck Outer Coil

  • Position 5: Neck
